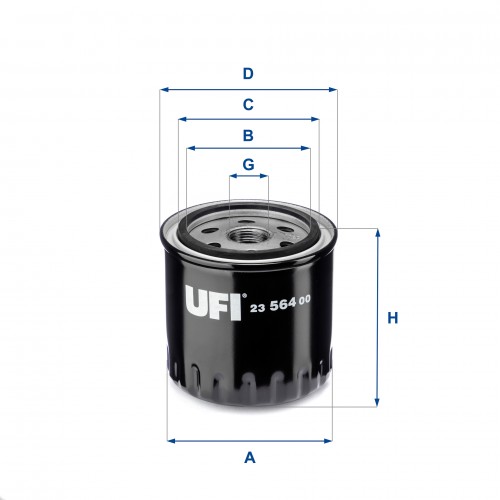

Dimensions (mm)
A: 86.0
B: 62.0
C: 72.0
D: 89.0
G: M 20 X 1.5
H: 90.0
bar: 1.6
R: 1

Applications
INFINITI
FX 30 d (S51) (V9X) 175kW 238HP 03/10 →
M (Y51) M30d (V9X) 175kW 238HP 07/10 →
Q70 (Y51) 3.0 d (V9X) 175kW 238HP 05/13 →
QX50 (J50) 3.0 d (V9X) 175kW 238HP 05/13 →
QX70 (S51) 3.0 d AWD (V9X) 175kW 238HP 05/13 →
NISSAN
Navara (D40) 3.0 DCI (V9X) 170kW 231HP 04/10 → 10/15
Pathfinder (R51M) 3.0 DCI (V9X) 170kW 231HP 04/10 →
RENAULT
Grand Scenic III 1.9 DCI 130 FAP (F9Q-870) 96kW 130HP 02/09 →
Laguna III 3.0 DCI (V9X) 173kW 235HP 05/09 → 12/15
Laguna III 3.0 DCI (V9X) 173kW 235HP 12/08 → 04/09
Latitude 3.0 V6 DCI 240 Auto. (V9X-891) 177kW 241HP 08/10 → 12/15
Megane III 1.9 DCI 130 (F9Q-872) 96kW 130HP 11/08 →
Megane III 1.9 DCI 130 DPF (F9Q-870) 96kW 130HP 11/08 →
Megane III C-C 1.9 DCI 130 DPF (F9Q-870/F9Q-872) 96kW 130HP 06/10 →
Scenic III (X-Mod) 1.9 DCI 130 (F9Q-870/872) 96kW 130HP 06/09 →
Scenic III (X-Mod) 1.9 DCI 130 FAP (F9Q-870/872) 96kW 130HP 06/09 →
SUZUKI
Grand Vitara 1.9 DDiS (Renault F9Q) 95kW 129HP
