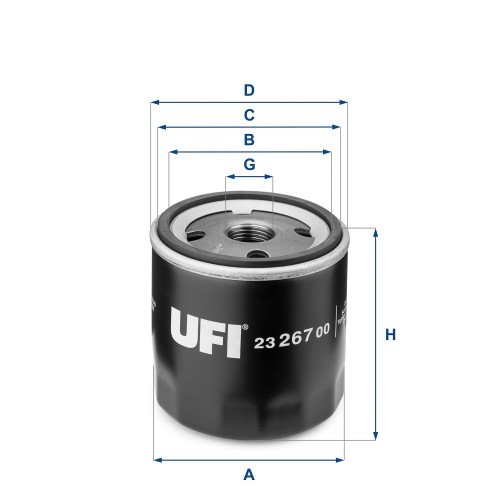

Dimensions (mm)
A: 76.0
B: 61.5
C: 71.5
D: 78.3
G: 3/4-16 UNF
H: 74.0
bar: 1.2
R: 1

Applications
FIAT
Cinquecento 700 ED (704) 01/92 →
Cinquecento 700 ED cat (704) 01/92 →
FORD
B-Max 1.4 Duratec (Zetec (SPJD)) 66kW 90HP 09/12 →
B-Max 1.4 GPL/LPG (RTJC) 66kW 90HP 08/13 →
B-Max 1.4 GPL/LPG (RTJC) 63kW 86HP 08/13 →
B-Max 1.6 Ti-VCT Duratec (IQJA/IQJC) 77kW 105HP 08/12 →
C-Max 1.6 74kW 101HP 03/07 →
C-Max 1.6 74kW 101HP 03/07 →
C-Max 1.6 85kW 116HP 04/07 → 09/10
C-Max 1.6 85kW 116HP 04/07 → 09/10
C-Max II 1.5 EcoBoost 150 110kW 150HP 03/15 →
C-Max II 1.5 EcoBoost 180 134kW 182HP 03/15 →
C-Max II 1.6 EcoBoost 150 110kW 150HP 09/10 →
C-Max II 1.6 EcoBoost SCTi 134kW 182HP 09/10 →
C-Max II 1.6 Flexifuel (MUDA) 88kW 120HP 02/11 →
C-Max II 1.6 GPL/LPG 120 88kW 120HP 02/12 →
C-Max II 1.6 GPL/LPG 125 92kW 125HP 02/12 →
C-Max II 1.6 Ti (Duratec) 77kW 105HP 09/10 →
C-Max II 1.6 Ti (Duratec) 92kW 125HP 09/10 →
C-Max II 1.6 Ti (Duratec) 63kW 86HP 09/11 →
C-Max II 1.6 Ti (MUDA) 88kW 120HP 02/12 →
EcoSport 1.5 Ti-VCT (Duratec) 82kW 112HP 10/13 →
Fiesta Van 1.25 (SNJA/SNJB) 60kW 82HP 01/09 →
Fiesta VI 1.2 16V 44kW 60HP 10/08 →
Fiesta VI 1.2 16V 44kW 60HP 10/08 →
Fiesta VI 1.2 16V 60kW 82HP 10/08 →
Fiesta VI 1.2 16V 60kW 82HP 10/08 →
Fiesta VI 1.25 (STJB) 44kW 60HP 10/12 →
Fiesta VI 1.4 16V 71kW 96HP 10/08 →
Fiesta VI 1.4 16V 71kW 96HP 10/08 →
Fiesta VI 1.4 16V Autom. 71kW 96HP 10/08 →
Fiesta VI 1.4 16V Autom. 71kW 96HP 10/08 →
Fiesta VI 1.4 16V GPL/LPG (RTJA/RTJB/RTJD/SPJA/SPJC/SPJE) 71kW 96HP 01/09 → 04/17
Fiesta VI 1.4 16V GPL/LPG (RTJA/RTJB/RTJD/SPJA/SPJC/SPJE) 71kW 96HP 01/09 → 04/17
Fiesta VI 1.6 ST 180 EcoBoost (JTJA/JTJB) 134kW 182HP 01/13 → 04/17
Fiesta VI 1.6 ST 200 EcoBoost (JTJC) 147kW 200HP 06/16 → 04/17
Fiesta VI 1.6 Ti-VCT (IQJA/IQJC/IQJE) 77kW 105HP 10/12 → 04/17
Fiesta VI 1.6 Ti-VCT (XTJA) 62kW 84HP 03/15 → 04/17
Fiesta VI 1.6 Ti-VCT 16V (HXJA/HXJB/HXJE/RVJA) 88kW 120HP 10/08 → 04/17
Fiesta VI 1.6 Ti-VCT Sport S 99kW 134HP 02/11 →
Fiesta VI 1.6 Ti-VCT Sport S 99kW 134HP 02/11 →
Focus II 1.6 16V 74kW 101HP 04/07 →
Focus II 1.6 16V 74kW 101HP 04/07 →
Focus II 1.6 16V TI VCT 85kW 115HP 04/07 →
Focus II 1.6 16V TI VCT 85kW 115HP 04/07 →
Focus II 1.8 16V 92kW 125HP 04/07 → 09/12
Focus II 1.8 16V 92kW 125HP 04/07 → 09/12
Focus II 1.8 16V Flexifuel 92kW 125HP 04/07 → 09/12
Focus II 1.8 16V Flexifuel 92kW 125HP 04/07 → 09/12
Focus III 1.5 EcoBoost 150 (M8DA/M8DB) 110kW 150HP 09/14 →
Focus III 1.5 EcoBoost 180 (M9DA/M9DB) 134kW 182HP 09/14 →
Focus III 1.6 EcoBoost SCTi (Sigma) 110kW 150HP 03/11 → 10/14
Focus III 1.6 EcoBoost SCTi (Sigma) 132kW 180HP 03/11 → 10/14
Focus III 1.6 Ti-VCT (Duratec) 92kW 125HP 03/11 →
Focus III 1.6 Ti-VCT (Duratec) 77kW 105HP 03/11 →
Focus III 1.6 Ti-VCT (Zetec-S) 63kW 86HP 08/11 →
Focus III 1.6 Ti-VCT FlexiFuel (Duratec) 92kW 125HP 03/11 →
Focus III 1.6 Ti-VCT FlexiFuel (MUDA) 88kW 120HP 03/11 →
Focus III 1.6 Ti-VCT FlexiFuel 150 (YUDA) 110kW 150HP 07/13 →
Focus III 1.6 Ti-VCT GPL/LPG (MUDA) 88kW 120HP 02/12 →
Focus III 1.6 Ti-VCT GPL/LPG (MUDA) 86kW 117HP 02/12 →
Focus IV 1.5 Ecoboost Ti-VCT 120 (Y2DA) 90kW 122HP 09/18 →
Galaxy II 1.6 EcoBoost SCTI 118kW 160HP 11/10 →
Galaxy II 1.6 EcoBoost SCTI 118kW 160HP 11/10 →
Galaxy III 1.5 EcoBoost 118kW 160HP 04/15 →
Grand C-Max II 1.6 (Duratec) 77kW 105HP 09/10 →
Grand C-Max II 1.6 (Duratec) 92kW 125HP 09/10 →
Grand C-Max II 1.6 EcoBoost 150 110kW 150HP 09/10 →
KA + (Plus) 1.2 Ti-VCT 70 (B2KA) 51kW 70HP 06/16 → 02/18
KA + (Plus) 1.2 Ti-VCT 85 (YSKD/YSKE) 63kW 86HP 06/16 → 02/18
KA + (Plus) 1.5 TDCI 95 (XUKE) 70kW 95HP 06/16 → 02/18
Kuga II 1.5 EcoBoost 150 110kW 150HP 09/14 →
Kuga II 1.5 EcoBoost 180 134kW 182HP 09/14 →
Kuga II 1.6 EcoBoost SCTi 150 110kW 150HP 02/13 →
Kuga II 1.6 EcoBoost SCTi 180 134kW 182HP 02/13 →
Mondeo IV 1.6 Ti-VCT 88kW 120HP 09/10 →
Mondeo IV 1.6 Ti-VCT 88kW 120HP 09/10 →
Mondeo IV 1.6 Ti-VCT 81kW 110HP 04/07 →
Mondeo IV 1.6 Ti-VCT 81kW 110HP 04/07 →
Mondeo IV 1.6 Ti-VCT 92kW 125HP 04/07 →
Mondeo IV 1.6 Ti-VCT 92kW 125HP 04/07 →
Mondeo V 1.5 EcoBoost 118kW 160HP 10/14 →
Mondeo V 1.5 EcoBoost 165 (UNCN) 121kW 165HP 05/18 →
S-Max 1.6 EcoBoost SCTi 118kW 160HP 11/10 →
S-Max 1.6 EcoBoost SCTi 118kW 160HP 11/10 →
S-Max II 1.5 EcoBoost 160 118kW 160HP 04/15 →
S-Max II 1.5 EcoBoost 165 (YNCA) 121kW 165HP 07/18 →
Tourneo Connect II (V408) 1.6 EcoBoost 150 (Sigma) 110kW 150HP 10/13 →
Transit Connect II (V408) 1.6 EcoBoost (Sigma) 110kW 150HP 10/13 →
VOLVO
C30 1.6 (B4164S3) 74kW 100HP 06/07 → 10/10
C30 1.6 (B4164S3) 74kW 100HP 06/07 → 10/10
S40 1.6 (S4164S3) 74kW 101HP 06/07 →
S40 1.6 (S4164S3) 74kW 101HP 06/07 →
S60 II 1.6 T3 (B4164T3) 110kW 150HP 11/10 →
S60 II 1.6 T4 (B4164T) 132kW 180HP 11/10 →
S60 II 1.6 T4F (B4164T2) 132kW 180HP 04/11 →
S80 II 1.6 T4 (B4164T) 132kW 180HP 11/10 →
S80 II 1.6 T4F (B4164T2) 132kW 180HP 05/11 →
S80 II 2.0 T5 (B4204T7) 177kW 240HP 10/10 → 12/16
V40 Cross Country 1.6 T4 (B4164T) 132kW 180HP 06/12 →
V40 II 1.6 T2 (B4164T4) 88kW 120HP 03/13 →
V40 II 1.6 T3 (B4164T3) 110kW 150HP 06/12 →
V40 II 1.6 T4 (B4164T) 132kW 180HP 06/12 →
V50 1.6 (B4164S3) 74kW 101HP 06/07 → 12/12
V50 1.6 (B4164S3) 74kW 101HP 06/07 → 12/12
V60 1.6 T3 (B4164T3) 110kW 150HP 07/10 →
V60 1.6 T4 (B4164T) 132kW 180HP 07/10 →
V70 III 1.6 T4 (B4164T) 132kW 180HP 10/10 →
V70 III 1.6 T4F Flexifuel (B4164T2) 132kW 180HP 01/11 →
