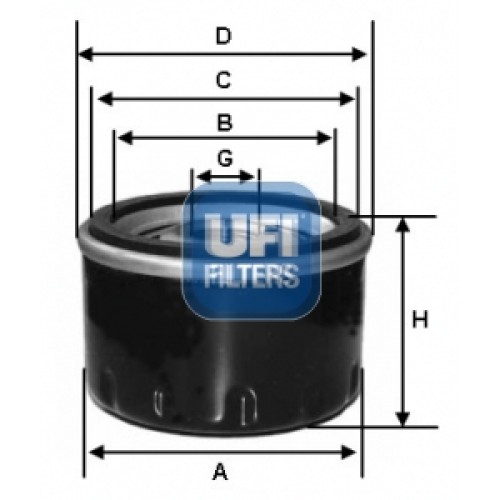

Dimensions (mm)
B: 62.0
C: 71.0
D: 76.5
G: 3/4-16 UNF
H: 56.0
bar: 1.2
R: 1

Applications
ALPINE
A 110/1600 1.6 01/62 → 12/77
A 110/1600S 1.6 01/62 → 12/77
A 310 1.6 01/71 → 06/84
A 310 TX 1.6 01/71 → 06/84
R 5 R 5 01/72 → 06/84
COUACH
RC Serie RC 100 Jet
LOTUS
Europa 1.5 (Renault (1470)) 01/70 →
Europa 1.6 (Renault (1565)) 01/70 →
RENAULT
R12 1.6 Gordini (R1173) (821/807) 08/70 → 12/76
R15 1.6 TS (1565) 66kW 90HP 03/72 → 10/80
R15 1.6 TS (1647) 75kW 102HP 03/72 → 10/80
R16 1.6 TS (R1154) (807) 61kW 83HP 09/68 → 08/80
R16 1.6 TX (R1156) (843) 68kW 93HP 06/74 → 08/80
R16 1.6 TXA (R1156) (843) 68kW 93HP 06/74 → 08/80
R17 1.6 TL (1565) 03/72 → 10/80
R177 1.6 TL (1565) 03/72 → 10/80
R4 1.1 (R1128) (688/C1E) 07/83 → 06/84
R4 1.1 (R1128) (688/C1E) 06/78 → 06/83
R4 1.1 GTL (R1128) (688/C1E) 01/78 → 06/84
R4 F6 1.1 (1108) → 06/84
R4 F6 1.1 (1108) → 06/84
R4 F6 1.1 (1108) → 06/84
R5 0.8 (5cv) (R1221) (800-702) 26kW 36HP 10/72 → 06/84
R5 0.8 TL (R1220/R1221) (800C710/839) 26kW 36HP 01/72 → 06/79
R5 0.8 TL (R1220/R1221) (800C710/839) 26kW 36HP 07/79 → 06/84
R5 1.0 L (R1222) (689-710) 32kW 44HP 07/79 → 06/84
R5 1.0 L (R1222) (689-710) 32kW 44HP 01/72 → 06/79
R5 1.0 Laureate (R1222) (689-710) 32kW 44HP 07/79 → 06/84
R5 1.0 Laureate (R1222) (689-710) 32kW 44HP 01/72 → 06/79
R5 1.0 Le Car (R1392) (689-710) 32kW 44HP 10/79 → 06/84
R5 1.0 Société (R2382) (689-710) 32kW 44HP 09/75 → 06/79
R5 1.0 Société (R2382) (689-710) 32kW 44HP 07/79 → 12/79
R5 1.0 TL (R1222) (689-710) 32kW 44HP 07/79 → 06/84
R5 1.0 TL (R1222) (689-710) 32kW 44HP 01/72 → 06/79
R5 1.0 TL (R1392) (689-710) 32kW 44HP 07/79 → 06/84
R5 1.1 GTL (R1227) (688) 33kW 45HP 07/79 → 06/84
R5 1.1 GTL (R1397) (688-713) 33kW 45HP 07/79 → 06/84
R5 1.1 Laureate (R1227) (688-713) 33kW 45HP 07/79 → 06/84
R5 1.1 Laureate (R1397) (688-713) 33kW 45HP 07/79 → 06/84
R5 1.1 Le Car (R1227) (688) 33kW 45HP 07/79 → 06/84
R5 1.1 Le Car (R1397) (688-713) 33kW 45HP 07/79 → 06/84
R5 1.1 Société (R2387) (688-713) 33kW 45HP 10/79 → 06/84
R5 1.1 TL (R1227) (688) 33kW 45HP 07/79 → 06/84
R5 1.1 TL (R1397) (688-713) 33kW 45HP 07/79 → 06/84
R5 1.3 Automatic (R1225) (810-729) 40kW 54HP 09/76 → 06/79
R5 1.3 Automatic (R1225) (810-729) 40kW 54HP 07/79 → 09/84
R5 1.3 Automatic (R1395) (810-729) 40kW 54HP 10/79 → 06/84
R5 1.3 GTL (R1225) (810-726) 31kW 42HP 07/79 → 09/84
R5 1.3 GTL (R1225) (810-726) 31kW 42HP 09/76 → 06/79
R5 1.3 GTL (R1395) (810-719) 33kW 45HP 10/79 → 06/84
R5 1.3 Le Car (R1224) (810-725) 47kW 64HP 01/74 → 06/84
R5 1.3 LS (R1224) (810-725) 47kW 64HP 01/74 → 06/84
R5 1.3 TS (R1224) (810-725) 47kW 64HP 01/74 → 06/84
R5 1.4 Automatic (R1229) (847-712) 43kW 59HP 06/79 → 06/84
R5 1.4 Automatic (R1399) (847-712) 43kW 59HP 06/80 → 06/84
R5 1.4 TS (R1229) (C2J) 46kW 63HP 06/79 → 06/84
R5 1.4 TX (R1229) (C2J) 46kW 63HP 01/82 → 06/84
R5 1.4 TX (R1229) (C2J-713) 46kW 63HP 06/79 → 06/84
R6 1.1 (R1181) (688) 35kW 48HP 10/69 → 04/80
R6 1.1 TL (6cv) (R1181) (688) 35kW 48HP 10/70 → 04/80
R6 1.1 TL (6cv) (R1181) (688) 35kW 48HP 10/70 → 04/80
Rodeo 5 1.1 (1108) (688-712) 25kW 34HP 06/81 → 06/84
Rodeo 5 1.1 Hoggar (1108) (688-712) 25kW 34HP 06/81 →
Rodeo 6 1.1 (1108) 35kW 48HP 05/70 → 11/81
Rodeo 6 1.1 (1108) 35kW 48HP 05/70 → 11/81
RENAULT (E)
R4 1.1 (1108) → 03/84
R4 F6 R4 F6 28kW 38HP → 03/84
R5 1.1 (1108) → 03/84
R6 1.0 TL (956) → 03/84
R6 1.1 (1108) → 03/84
R6 1.1 GTL (1108) → 03/84
R7 1.0 TL (1037)
R7 1.1 GTL (1108)
R7 1.1 TL (1108)
