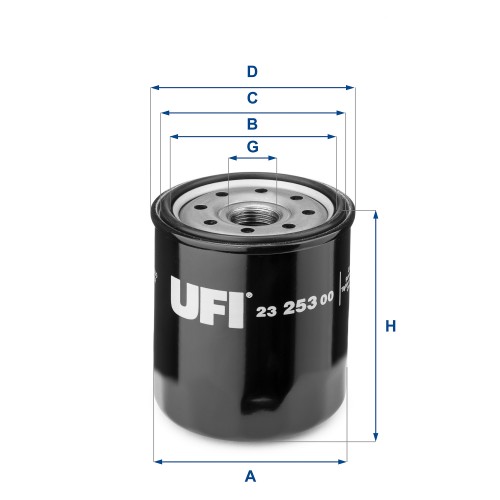

Dimensions (mm)
A: 74.0
B: 63.0
C: 70.5
D: 76.5
G: 3/4-16 UNF
H: 86.5
bar: 1.0
R: 1
Applications
CASE
400 Serie 420 (PERKINS D422/M2) 42kW 57HP 02/05 →
CASE IH
Farmall 55A 41kW 56HP 03/10 →
CATERPILLAR
300 Serie 301.5 (N.BFA1 -) (3003) 13kW 18HP 01/98 →
300 Serie 301.6 (N.BFA1 -) (3003) 13kW 18HP 01/98 →
300 Serie 301.8 (N.BFA1 -) (3003) 13kW 18HP 01/98 →
300 Serie 304 CR (N.ANR1 -) (3044C) 01/03 → 12/06
300 Serie 304.5 (N.ANR1 -) (3024) 28kW 38HP 01/00 → 12/02
CB Serie CB 14 (C1.1) 16kW 22HP
CB Serie CB 214 B (Hatz)
CB Serie CB 214 E (2141->) (Cat 3013 C) 24kW 33HP
CB Serie CB 224 D (8RZ1 ->) (Cat 3013)
CB Serie CB 334 D (Cat 3013/3014) 31kW 42HP
CB Serie CB 335 D (5PZ ->) (Cat 3014) 31kW 42HP
CHERY
Omoda 5 | 22 - 1.5 (SQRE4T15C) 115kW 156HP 07/22 →
Omoda 5 | 22 - 1.6 TGDI (SQRF4J16) 145kW 197HP 07/22 →
Tiggo 4 | 17- 1.5 (SQRE4G15B) 83kW 113HP 06/21 →
Tiggo 4 | 17- 1.5 Turbo (SQRE4T15B) 108kW 147HP 09/17 →
Tiggo 4 Pro | 21- 1.5 (SQRE4G15B) 83kW 113HP 01/21 →
Tiggo 4 Pro | 21- 1.5 Turbo (SQRE4T15B) 108kW 147HP 01/21 →
Tiggo 7 Pro | 20- 1.5 Turbo (SQRE4T15C) 108kW 147HP 01/20 →
Tiggo 8 | 18- 1.5 Turbo (SQRE4T15B) 108kW 147HP 01/18 →
Tiggo 8 | 18- 2.0 Turbo (SQRD4T20) 125kW 170HP 01/18 →
Tiggo 8 Pro | 21- 2.0 Turbo (SQRD4T20) 125kW 170HP 03/21 →
DYNAPAC
CC Serie CC 1000 (PERKINS 403C-11) 17kW 24HP 01/08 →
CC Serie CC 1000 (Kubota D1105-E4B) 18kW 24HP 01/08 →
J.C.B.
8000 Serie 8025 (Perkins 403-15) 20kW 27HP 01/06 →
8000 Serie 8025 ZTS (403C-15/3D-15/3D-17Tier IV) 01/06 →
8000 Serie 8027 Z (Perkins 403C-15) 21kW 29HP 01/02 → 12/06
8000 Serie 8030 Z
8000 Serie 8030 ZTS
8000 Serie 8032 Z (Perkins 403C-15) 21kW 29HP 01/02 → 12/06
8000 Serie 8035 ZTS (Perkins 403C-17)
JAECOO
7 | 24- 1.5 PHEV (SQRH4J15) 255kW 347HP 01/25 →
7 | 24- 1.6 (SQRF4J16C) 108kW 147HP 10/24 →
LEXUS
ES Serie ES 300 (3VZ-FE) 138kW 187HP 06/91 → 08/94
ES Serie ES 300 (1MZ-FE) 08/94 → 08/96
ES Serie ES 300 (2JZ-GE) 08/96 → 07/01
GS Serie GS 300 (JSE70) (2JZ-GE) 03/93 → 12/97
GS Serie GS 300 (JZS147) (2JZ-GE) 03/93 → 12/97
GS Serie GS 300 (JZS160) (2JZ-GE) 10/00 →
GS Serie GS 300 T3 (JZS160) (2JZ-FE) 12/97 → 10/00
IS 200 IS 200 (1G-FE) 114kW 155HP 04/99 → 07/05
IS 200 IS 200 Compressor (1GE-FEC) 137kW 187HP 07/00 → 07/05
IS 300 IS 300 (2JZ-GE) 157kW 213HP 07/00 → 07/05
RX Serie RX 300 V6 24V (MCU3) (1MZ-FE) 150kW 204HP 05/03 → 12/08
RX Serie RX 300 V6 24V VVTi (MCU15) (1MZ-FE) 148kW 201HP 01/98 → 02/03
RX Serie RX 330 (MCU3) (3MZFE) 171kW 232HP 04/03 → 12/08
RX Serie RX 400h Hybrid (MHU3) (3MZFE) 200kW 272HP 03/05 → 12/08
SC 300 SC 300 (2JZ-GE) 01/92 → 12/96
MINI
Mini (R50) 1.4 One D (W17D14A) 55kW 75HP 05/03 → 09/05
Mini (R50) 1.4 One D (W17D14A) 55kW 75HP 05/03 → 09/05
Mini (R50) 1.4 One D (W17D14A) 65kW 88HP 09/05 → 12/06
Mini (R50) 1.4 One D (W17D14A) 65kW 88HP 09/05 → 12/06
NEW HOLLAND
Boomer 2030 05/08 →
Boomer 2035 05/08 →
Boomer 3040 05/08 →
Boomer 3045 05/08 → 02/10
Boomer 3050 03/08 →
Boomer 8N 06/09 →
L Serie L220 (FPT Tier4B) 50kW 67HP 05/13 →
OMODA
5 | 22- 1.6 TGDi (SQRF4J16C) 108kW 147HP 10/24 →
TOYOTA
4 Runner 2.4 (22R) 03/84 → 08/84
4 Runner 2.4 F.I. (22R-EC) 08/84 → 05/89
4 Runner 2.4 i (RN61) (22R-E, 22R-EC) 03/88 →
4 Runner 3.0 i V6 (VZN130) (3V-ZE) 105kW 143HP 07/90 → 03/96
4 Runner 3.0 i V6 SR5 (3V-ZE) 01/90 →
4 Runner 3.0 V6 F.I. (3V-ZE) 11/87 → 12/94
4 Runner 4.0 (1GR-FE) 174kW 237HP 09/05 → 09/09
4 Runner 4.0 (_N21_) (1GR-FE) 183kW 249HP 08/02 → 07/09
Alphard I 3.0 V6 (1MZ-FE) 162kW 220HP 09/03 → 03/08
Auris I (E15#) 1.4 D-4D (1ND-TV) 66kW 90HP 10/06 → 12/08
Auris I (E15#) 1.4 D-4D M-MT (1ND-TV) 66kW 90HP 10/06 → 12/08
Avalon 3.0 V6 24V F.I. (1MZ-FE) 02/94 → 09/97
Avalon 3.0 V6 24V F.I. (1MZ-FE) 10/97 → 07/05
Camry 2.2 i 16V (SXV20) (5S-FE) 93kW 126HP 09/00 →
Camry 2.5 i V6 24V (VZV21) (2V-ZFE) 02/88 → 08/91
Camry 3.0 i V6 24V (MCV10) (1M-ZFE) 09/94 → 08/96
Camry 3.0 i V6 24V (MCV10) (1M-ZFE) 10/93 → 08/94
Camry 3.0 i V6 24V (MCV20) (1MZ-FE) 140kW 190HP 08/96 → 07/01
Camry 3.0 i V6 24V (VCV10) (3V-ZFE) 138kW 188HP 06/91 → 08/96
Camry 3.0 VVTi (MCV30) (1MZFE) 137kW 186HP 07/01 → 11/06
Celica (Supra) 3.0 i 24V (MA70) (7M-GE) 08/87 → 08/92
Celica (Supra) 3.0 i 24V Turbo (MA70) (7M-GTE) 08/87 → 08/92
Celica 2.0 i 16V Turbo 4WD (ST165) (3S-TE, 3S-GTE) 10/87 → 03/90
Corolla (E12#) 1.4 D-4D (1ND-TV) 66kW 90HP 08/04 → 02/07
Corolla 1.4 D-4D (E12#) (1ND-TV) 66kW 90HP 09/04 →
Cressida 3.0 i EFI (MX83) (7M-GE) 08/88 → 07/92
FJ Cruiser 4.0 (1GRFE) 176kW 239HP 06/05 → 12/09
FJ Cruiser 4.0 (1GRFE) 203kW 276HP 06/05 → 01/18
FJ Cruiser 4.0 (1GRFE) 178kW 242HP 01/06 → 01/18
FJ Cruiser 4.0 (1GRFE) 191kW 260HP 01/10 → 06/14
Fortuner 2.7 4x4 (TGN 156) VVTi (2TR-FE) 122kW 166HP 05/15 →
Fortuner 2.8 D 4x4 (GUN156) (1GD-FTV) 130kW 177HP 05/15 →
Hi-Ace 2.0 EFI (RZH102) (1RZ-E) 08/94 → 08/95
Hi-Ace 2.0 EFI (RZH112) (1RZ-E) 08/94 → 08/95
Hi-Ace 2.4 EFI (RCH1#, RCH2#) (2RZ-E) 85kW 116HP 08/95 → 11/03
Hi-Ace 2.4 EFI 4WD (RZH109) (2RZ-E) 88kW 120HP 08/94 → 04/98
Hi-Ace 2.4 EFI 4WD (RZH110) (2RZ-E) 88kW 120HP 08/94 → 04/98
Hi-Ace 2.4 EFI 4WD (RZH113) (2RZ-E) 88kW 120HP 08/94 → 04/98
Hi-Ace 2.4 EFI 4WD (RZH119) (2RZ-E) 88kW 120HP 08/94 → 04/98
Hi-Ace 2.5 D-4D (H1#/H2#) (2KD-FTV) 65kW 88HP 08/04 → 12/12
Hi-Ace 2.7 16V (KDH2#, LH2#, TRH2#) (2TR-FE) 111kW 151HP 12/13 → 01/15
Hi-Ace 2.7 16V (KDH2#, LH2#, TRH2#) (2TR-FE) 111kW 151HP 02/15 → 12/16
Hi-Ace 2.7 EFI (RCH13/19/23/29) (3RZ-FE) 08/95 → 05/06
Hi-Lux 2.4 i (RN5#) (22R-EC) 08/83 → 08/84
Hi-Lux 2.4 i (RN5#) (22R-EC) 09/84 → 05/89
Hi-Lux 2.4 i (RN6#) (22R-EC) 84kW 114HP 12/87 → 03/89
Hi-Lux 2.4 i 4x4 (RN106) (22R-E) 09/89 →
Hi-Lux 2.4 i 4x4 (RN110) (22R-E) 09/89 →
Hi-Lux 2.5 D-4D (KDN165) (2KD-FTV) 75kW 102HP 08/01 → 08/05
Hi-Lux 2.5 D-4D (KDN165) (2KD-FTV) 65kW 89HP 08/01 → 08/05
Hi-Lux 2.5 D-4D (KUN1#) (2KD-FTV) 88kW 120HP 07/05 →
Hi-Lux 2.5 D-4D (KUN15) (2KD-FTV) 75kW 102HP 07/05 →
Hi-Lux 2.5 D-4D (KUN2#) (2KD-FTV) 75kW 102HP 07/05 →
Hi-Lux 2.5 D-4D (KUN2#) (2KD-FTV) 88kW 120HP 07/05 →
Hi-Lux 3.0 D-4D (KUN2#) (1KD-FTV) 126kW 171HP 10/06 →
Hi-Lux 4.0 4WD (1GR-FE) 175kW 238HP 08/05 →
Hi-Lux VIII 2.4 D (GUN135) (2GD-FTV) 110kW 150HP 05/15 →
Hi-Lux VIII 2.4 D (GUN135) (2GD-FTV) 125kW 170HP 10/18 →
Hi-Lux VIII 2.4 D 4WD (GUN125) (2GD-FTV) 125kW 170HP 10/18 →
Hi-Lux VIII 2.4 D 4WD (GUN125) (2GD-FTV) 110kW 150HP 05/15 →
Hi-Lux VIII 2.8 D (GUN136) (1GD-FTV) 130kW 177HP 05/15 →
Hi-Lux VIII 2.8 D 4WD (GUN126) (1GD-FTV) 130kW 177HP 05/15 →
Hi-Lux VIII 2.8 D 4WD (GUN126) (1GD-FTV) 150kW 204HP 06/20 →
Land Cruiser 2.4 (RJ70) (22R) 08/87 → 12/90
Land Cruiser 2.4 i (RJ70) (22R-E) 01/89 → 12/92
Land Cruiser 2.4 i (RJ73) (22R-E) 01/89 → 12/92
Land Cruiser 2.8 TDI D4-D (J15#, KDJ15#) (1JD-FTV) 130kW 177HP 06/15 →
Land Cruiser 3.0 TDI D4-D (J15#) (1KD-FTV) 140kW 190HP 08/09 →
Land Cruiser 3.0 TDI D4-D (KDJ12#) (1KD-FTV) 127kW 173HP 08/06 → 12/07
Land Cruiser 3.0 TDI D4-D (KDJ12#) (1KD-FTV) 127kW 173HP 01/08 → 11/08
Land Cruiser 3.0 TDI D4-D (KDJ12#) (1KD-FTV) 127kW 173HP 12/08 → 02/10
Land Cruiser Prado 2.7 EFI (RZJ95R) (3RZ-FE) 07/96 →
Land Cruiser Prado 2.7 EFI Automatic (RZJ95R) (3RZ-FE) 07/96 →
Land Cruiser Prado 3.0 D4d (KDJ120) (1KDFTV) 150kW 204HP 08/06 → 07/09
Land Cruiser Prado 3.0 D4d (KDJ120/KDJ125) (1KDFTV) 120kW 163HP 08/06 → 08/09
Land Cruiser Prado 3.4 V6 EFI (VZJ95R) (5VE-FE) 07/96 →
Pick-up 2.4 (22R) 03/84 → 08/84
Pick-up 2.4 F.I. (22R-EC) 08/84 → 05/89
Pick-up 3.0 V6 F.I. (3V-ZE) 11/87 → 12/94
Previa 2.4 i 16V (TCR10) (2T-ZFE) 01/90 → 09/00
Previa 2.4 i 16V (TCR11) (2T-ZFE) 10/90 → 09/00
Previa 2.4 i 16V (TCR20) (2T-ZFE) 01/90 → 09/00
Supra 3.0 i (MA70) (7M-GE) 01/86 → 08/92
Supra 3.0 i 24V (JZA80) (2JZ-GE) 05/93 → 05/96
Supra 3.0 i 24V Turbo (JZA80) (2JZ-GTE) 05/93 → 05/96
Supra 3.0 i GT Turbo (MA70) (7M-GTE) 01/86 → 08/92
T 100 2.7 F.I. (RCK10) (3RZ-FE) 10/93 →
T 100 3.0 V6 F.I. (VCK10) (3V-ZE) 08/92 →
T 100 3.0 V6 F.I. (VCK20) (3V-ZE) 08/92 →
T 100 3.0 V6 F.I. 4WD (3V-ZE) 08/92 →
T 100 3.4 V6 F.I. (5V-ZFE) 08/92 →
T 100 3.4 V6 F.I. 4WD (5V-ZFE) 08/92 →
Tacoma 2.4 F.I. (2R-ZFE) 08/92 →
Tacoma 2.7 F.I. 4WD (3R-ZFE) 08/92 →
Tacoma 2.7 F.I. 4WD (3R-ZFE) 08/92 →
Tacoma 3.4 V6 F.I. 4WD (5V-ZFE) 08/92 →
Tacoma 3.4 V6 F.I. 4WD (5V-ZFE) 08/92 →
Tarago 2.4 i 16V (TRC10) (2T-ZFE) 01/90 →
Tarago 2.4 i 16V (TRC20) (2T-ZFE) 01/90 →
Yaris 1.4 TDI D-4D (1ND-TV) 55kW 75HP 09/01 → 11/05
Yaris 1.4 TDI D-4D (1ND-TV) 55kW 75HP 09/01 → 11/05
Yaris II 1.4 D-4D (NLP90) (1ND-TV) 66kW 90HP 11/05 → 10/08
Yaris Verso 1.4 TDI D-4D (NCP2#) (1ND-TV) 55kW 75HP 09/01 →
VOLKSWAGEN
Taro 2.4 i 4x4 (Toyota 22R, 22R-E) 06/89 → 03/97
